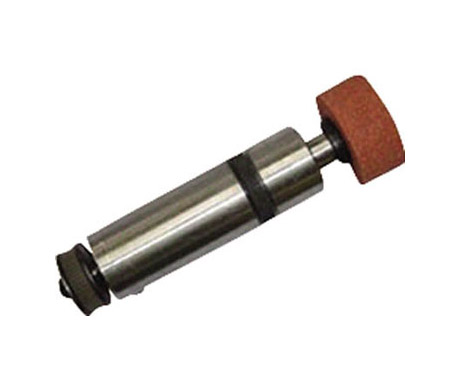

Spindle No. 4
Main Specifications
| product name | Spindle No. 4 |
|---|---|
| Part number | 314 |
| Abrasives available | Dedicated 48-mm dia. cup wheels Dedicated 48-mm dia. diamond/CBN wheels 75-mm cutting wheels |
| Max.number of revolutions | 13,000rpm |
| Gross weight | 1,250(g) |
| Package dimensions | 230×87×80 (mm) |
The GU-1 spindle accepting the largest diameter cup wheels.
Ideal for external grinding rather than for internal grinding.
The wheel diameter being larger than the spindle diameter, the external grinding of long distances is available depending on the installation on the lathe.
Also accepts cutting wheels.
